Mem0 now supports Graph Memory. With Graph Memory, users can now create and utilize complex relationships between pieces of information, allowing for more nuanced and context-aware responses. This integration enables users to leverage the strengths of both vector-based and graph-based approaches, resulting in more accurate and comprehensive information retrieval and generation.
NodeSDK now supports Graph Memory. 🎉

​
Installation

To use Mem0 with Graph Memory support, install it using pip:
pip install "mem0ai[graph]"
This command installs Mem0 along with the necessary dependencies for graph functionality. Try Graph Memory on Google Colab. Open In Colab

​
Initialize Graph Memory

To initialize Graph Memory you’ll need to set up your configuration with graph store providers. Currently, we support Neo4j, Memgraph, Neptune Analytics, Neptune DB Cluster,and Kuzu as graph store providers.

​
Initialize Neo4j

You can setup Neo4j locally or use the hosted Neo4j AuraDB.
If you are using Neo4j locally, then you need to install APOC plugins.
User can also customize the LLM for Graph Memory from the Supported LLM list with three levels of configuration:
  1. Main Configuration: If llm is set in the main config, it will be used for all graph operations.
  2. Graph Store Configuration: If llm is set in the graph_store config, it will override the main config llm and be used specifically for graph operations.
  3. Default Configuration: If no custom LLM is set, the default LLM (gpt-4o-2024-08-06) will be used for all graph operations.
Here’s how you can do it:
from mem0 import Memory

config = {
    "graph_store": {
        "provider": "neo4j",
        "config": {
            "url": "neo4j+s://xxx",
            "username": "neo4j",
            "password": "xxx"
        }
    }
}

m = Memory.from_config(config_dict=config)
If you are using NodeSDK, you need to pass enableGraph as true in the config object.

​
Initialize Memgraph

Run Memgraph with Docker:
docker run -p 7687:7687 memgraph/memgraph-mage:latest --schema-info-enabled=True
The --schema-info-enabled flag is set to True for more performant schema generation. Additional information can be found on Memgraph documentation. User can also customize the LLM for Graph Memory from the Supported LLM list with three levels of configuration:
  1. Main Configuration: If llm is set in the main config, it will be used for all graph operations.
  2. Graph Store Configuration: If llm is set in the graph_store config, it will override the main config llm and be used specifically for graph operations.
  3. Default Configuration: If no custom LLM is set, the default LLM (gpt-4o-2024-08-06) will be used for all graph operations.
Here’s how you can do it:
from mem0 import Memory

config = {
    "graph_store": {
        "provider": "memgraph",
        "config": {
            "url": "bolt://localhost:7687",
            "username": "memgraph",
            "password": "xxx",
        },
    },
}

m = Memory.from_config(config_dict=config)

​
Initialize Neptune Analytics

Note: You can use Neptune Analytics as part of an Amazon tech stack Setup AWS Bedrock, AOSS, and Neptune Create an instance of Amazon Neptune Analytics in your AWS account following the AWS documentation.
  • Public connectivity is not enabled by default, and if accessing from outside a VPC, it needs to be enabled.
  • Once the Amazon Neptune Analytics instance is available, you will need the graph-identifier to connect.
  • The Neptune Analytics instance must be created using the same vector dimensions as the embedding model creates. See: Vector indexing in Neptune Analytics.
Ensure that you attach your AWS credentials with access to your Amazon Neptune Analytics resources by following the Configuration and credentials precedence. The IAM user or role making the request must have a policy attached that allows one of the following IAM actions in that neptune-graph:
  • neptune-graph:ReadDataViaQuery
  • neptune-graph:WriteDataViaQuery
  • neptune-graph:DeleteDataViaQuery
User can also customize the LLM for Graph Memory from the Supported LLM list with three levels of configuration:
  1. Main Configuration: If llm is set in the main config, it will be used for all graph operations.
  2. Graph Store Configuration: If llm is set in the graph_store config, it will override the main config llm and be used specifically for graph operations.
  3. Default Configuration: If no custom LLM is set, the default LLM (gpt-4o-2024-08-06) will be used for all graph operations.
Here’s how you can do it:
from mem0 import Memory

# Provided neptune-graph instance must have the same vector dimensions as the embedder provider.
config = {
    "graph_store": {
        "provider": "neptune",
        "config": {
            "endpoint": "neptune-graph://<GRAPH_ID>",
        },
    },
}

m = Memory.from_config(config_dict=config)
Troubleshooting:
  • For issues connecting to Amazon Neptune Analytics, please refer to the Connecting to a graph guide.
  • For issues related to authentication, refer to the boto3 client configuration options.
  • For more details on how to connect, configure, and use the graph_memory graph store, see the Neptune Analytics example in our AWS example guide.
  • The Neptune memory store uses AWS LangChain Python API to connect to Neptune instances. For additional configuration options for connecting to your Amazon Neptune Analytics instance, see AWS LangChain API documentation.

​
Initialize Neptune DB

Note that Neptune DB does not support vectors, and this graph store provider requires a collection in the vector store to save entity vectors. Create a cluster of Amazon DB instances in your AWS account following the AWS documentation.
  • Public connectivity is not enabled by default. To access the instance from outside a VPC, public connectivity needs to be enabled on the Neptune DB instance by following Neptune Public Endpoints.
  • Once the Amazon Neptune Cluster instance is available, you will need the graph host endpoint to connect.
  • Neptune DB doesn’t support vectors. The collection_name config field can be used to specify the vector store collection used to store vectors for the Neptune entities.
Ensure that you attach your AWS credentials with access to your Amazon Neptune Analytics resources by following the Configuration and credentials precedence. The IAM user or role making the request must have a policy attached that allows one of the following IAM actions in that neptune-db:
  • neptune-db:ReadDataViaQuery
  • neptune-db:WriteDataViaQuery
  • neptune-db:DeleteDataViaQuery
User can also customize the LLM for Graph Memory from the Supported LLM list with three levels of configuration:
  1. Main Configuration: If llm is set in the main config, it will be used for all graph operations.
  2. Graph Store Configuration: If llm is set in the graph_store config, it will override the main config llm and be used specifically for graph operations.
  3. Default Configuration: If no custom LLM is set, the default LLM (gpt-4o-2024-08-06) will be used for all graph operations.
Here’s how you can do it:
from mem0 import Memory

config = {
    "graph_store": {
        "provider": "neptunedb",
        "config": {
            "collection_name": "<VECTOR_COLLECTION_NAME>",
            "endpoint": "neptune-graph://<HOST_ENDPOINT>",
        },
    },
}

m = Memory.from_config(config_dict=config)
Troubleshooting:

​
Initialize Kuzu

Kuzu is a fully local in-process graph database system that runs openCypher queries. Kuzu comes embedded into the Python package and there is no additional setup required. Kuzu needs a path to a file where it will store the graph database. For example:
config = {
    "graph_store": {
        "provider": "kuzu",
        "config": {
            "db": "/tmp/mem0-example.kuzu"
        }
    }
}
Kuzu can also store its database in memory. Note that in this mode, all stored memories will be lost after the program has finished executing.
config = {
    "graph_store": {
        "provider": "kuzu",
        "config": {
            "db": ":memory:"
        }
    }
}
You can then use the above configuration in the usual way:
from mem0 import Memory

m = Memory.from_config(config_dict=config)

​
Graph Operations

Mem0’s graph memory supports the following operations:

​
Add Memories

Mem0 with Graph Memory supports “user_id”, “agent_id”, and “run_id” parameters. You can use any combination of these to organize your memories. Use “userId”, “agentId”, and “runId” in NodeSDK.
# Using only user_id
m.add("I like pizza", user_id="alice")

# Using both user_id and agent_id
m.add("I like pizza", user_id="alice", agent_id="food-assistant")

# Using all three parameters for maximum organization
m.add("I like pizza", user_id="alice", agent_id="food-assistant", run_id="session-123")

​
Get all memories

# Get all memories for a user
m.get_all(user_id="alice")

# Get all memories for a specific agent belonging to a user
m.get_all(user_id="alice", agent_id="food-assistant")

# Get all memories for a specific run/session
m.get_all(user_id="alice", run_id="session-123")

# Get all memories for a specific agent and run combination
m.get_all(user_id="alice", agent_id="food-assistant", run_id="session-123")

​
Search Memories

# Search memories for a user
m.search("tell me my name.", user_id="alice")

# Search memories for a specific agent belonging to a user
m.search("tell me my name.", user_id="alice", agent_id="food-assistant")

# Search memories for a specific run/session
m.search("tell me my name.", user_id="alice", run_id="session-123")

# Search memories for a specific agent and run combination
m.search("tell me my name.", user_id="alice", agent_id="food-assistant", run_id="session-123")

​
Delete all Memories

# Delete all memories for a user
m.delete_all(user_id="alice")

# Delete all memories for a specific agent belonging to a user
m.delete_all(user_id="alice", agent_id="food-assistant")

​
Example Usage

Here’s an example of how to use Mem0’s graph operations:
  1. First, we’ll add some memories for a user named Alice.
  2. Then, we’ll visualize how the graph evolves as we add more memories.
  3. You’ll see how entities and relationships are automatically extracted and connected in the graph.

​
Add Memories

Below are the steps to add memories and visualize the graph:
1

Add memory 'I like going to hikes'

m.add("I like going to hikes", user_id="alice123")
Graph Memory Visualization

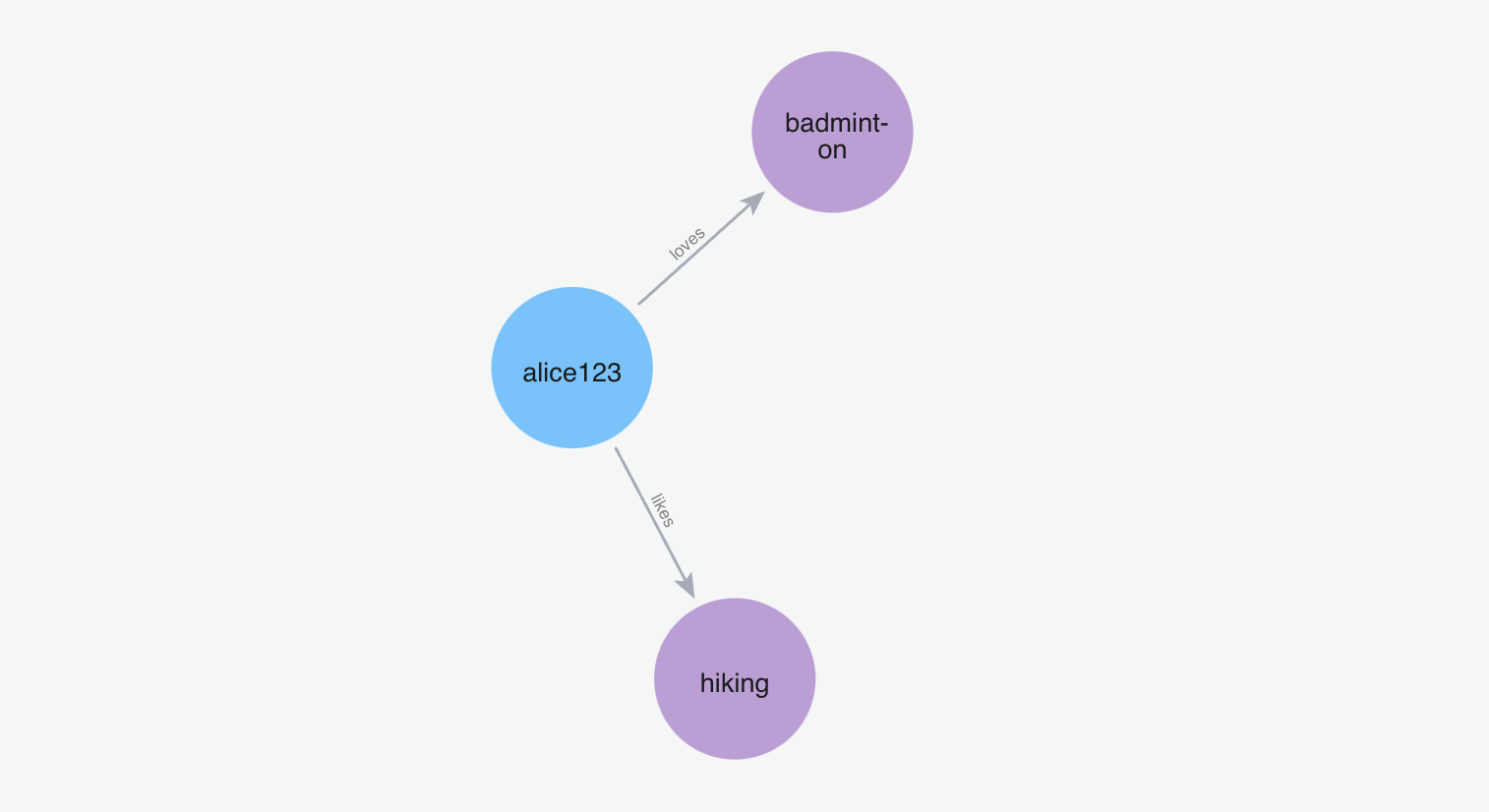

2

Add memory 'I love to play badminton'

m.add("I love to play badminton", user_id="alice123")
Graph Memory Visualization

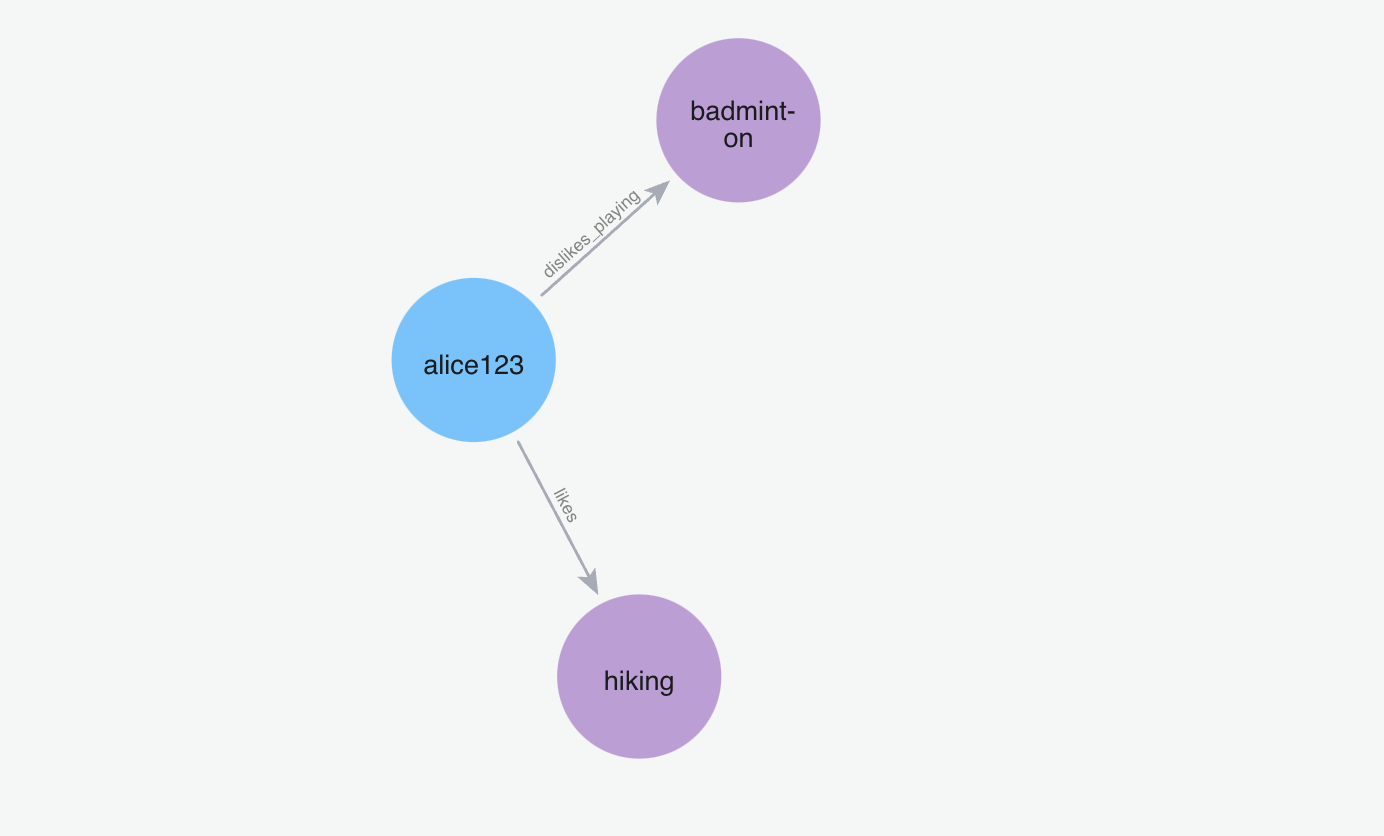

3

Add memory 'I hate playing badminton'

m.add("I hate playing badminton", user_id="alice123")
Graph Memory Visualization

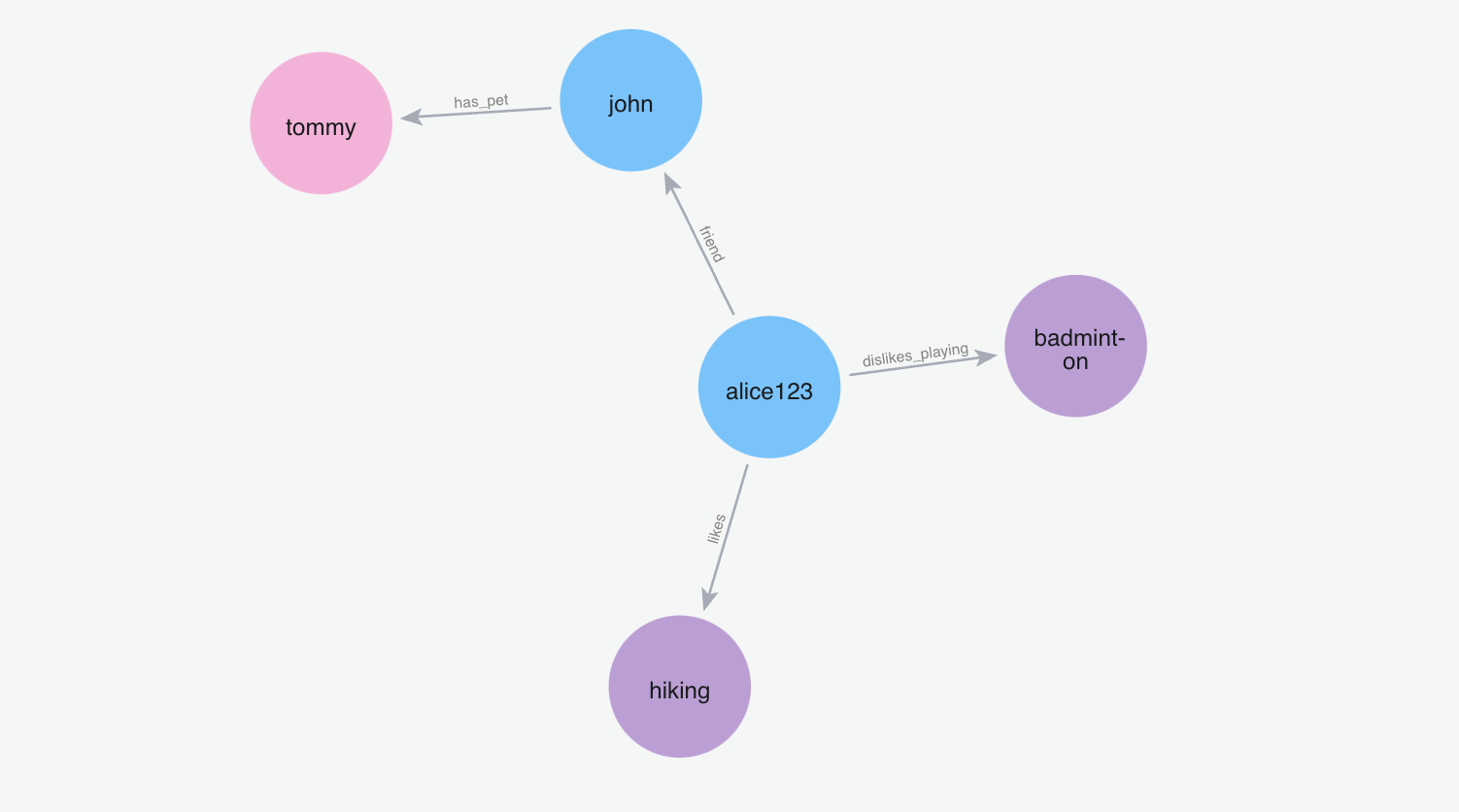

4

Add memory 'My friend name is john and john has a dog named tommy'

m.add("My friend name is john and john has a dog named tommy", user_id="alice123")
Graph Memory Visualization

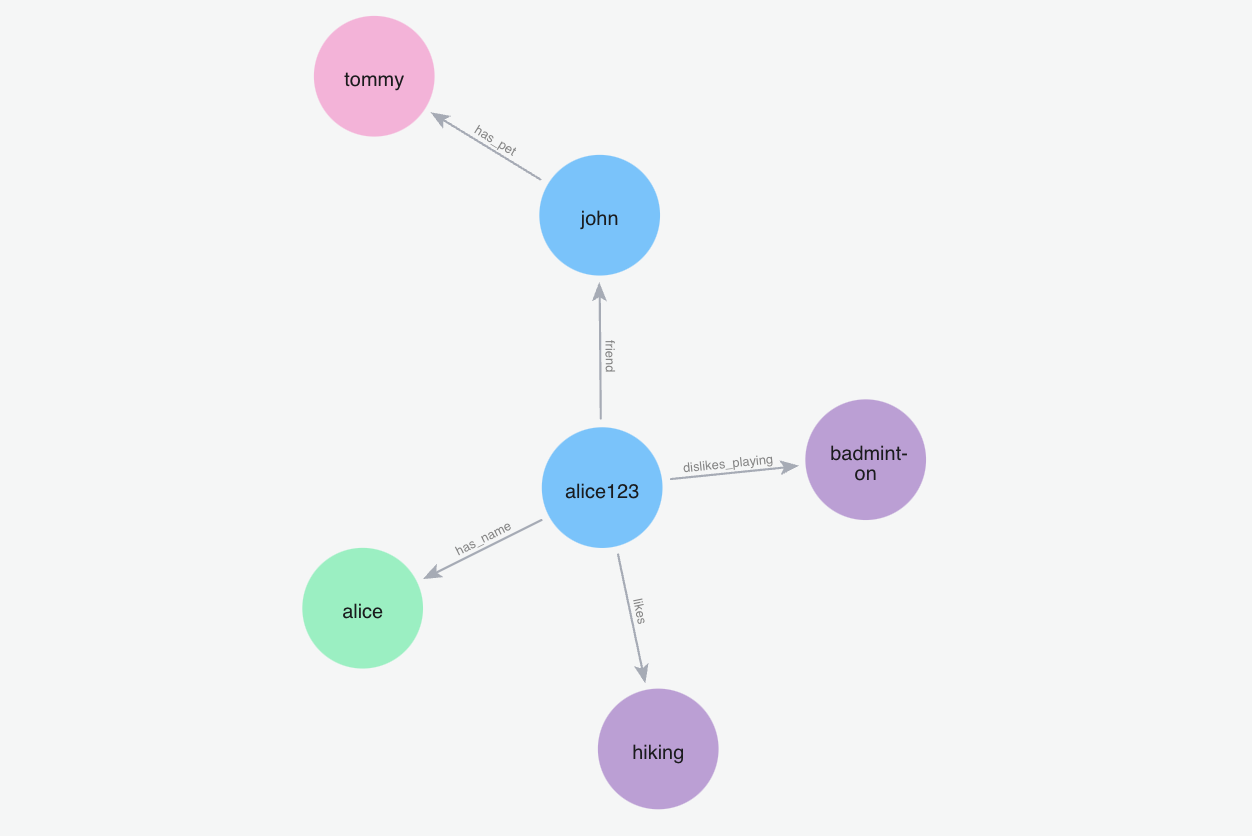

5

Add memory 'My name is Alice'

m.add("My name is Alice", user_id="alice123")
Graph Memory Visualization

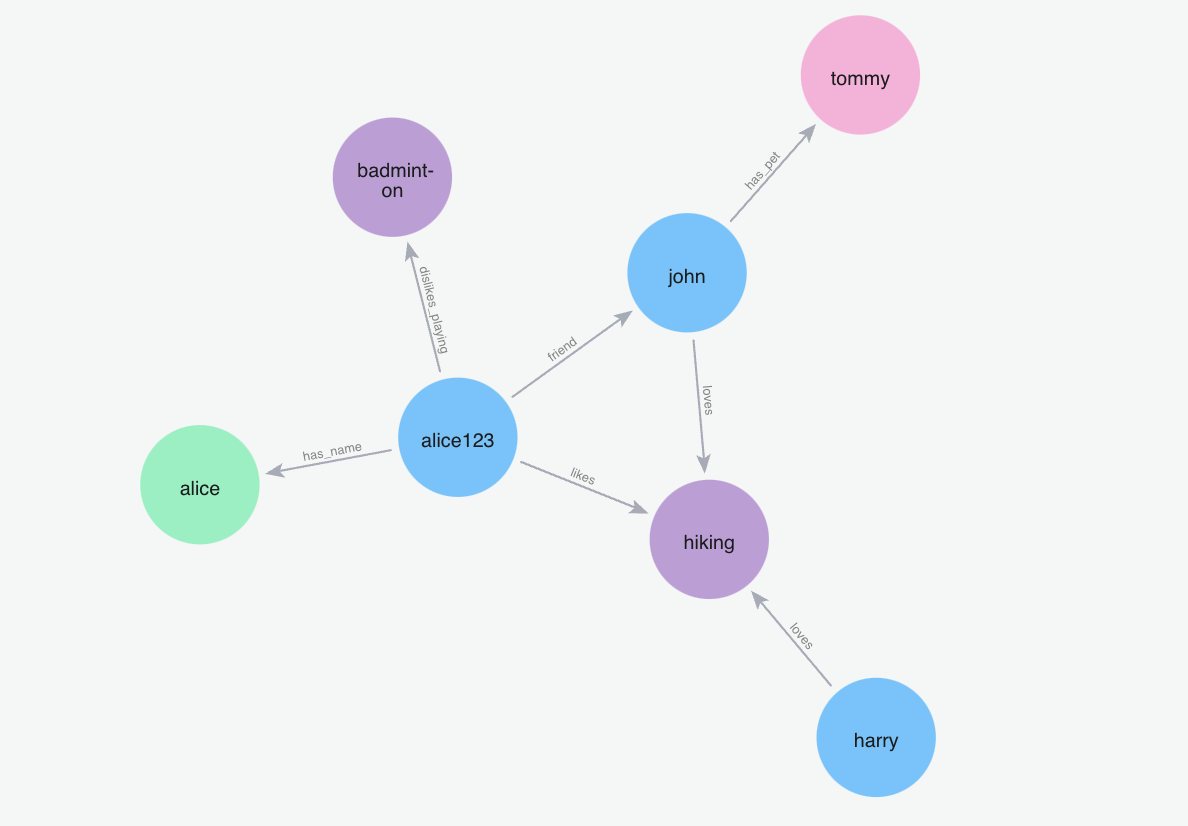

6

Add memory 'John loves to hike and Harry loves to hike as well'

m.add("John loves to hike and Harry loves to hike as well", user_id="alice123")
Graph Memory Visualization

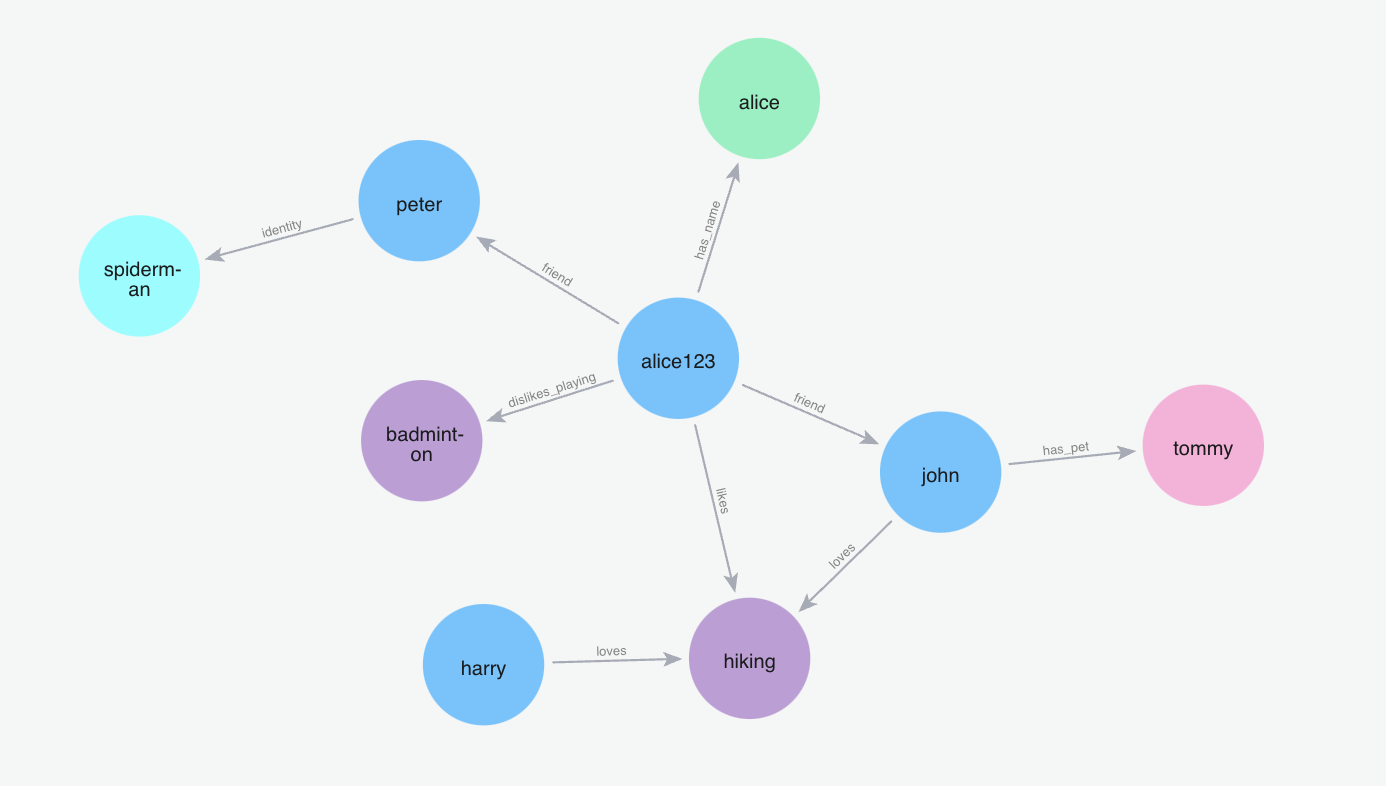

7

Add memory 'My friend peter is the spiderman'

m.add("My friend peter is the spiderman", user_id="alice123")
Graph Memory Visualization

​
Search Memories

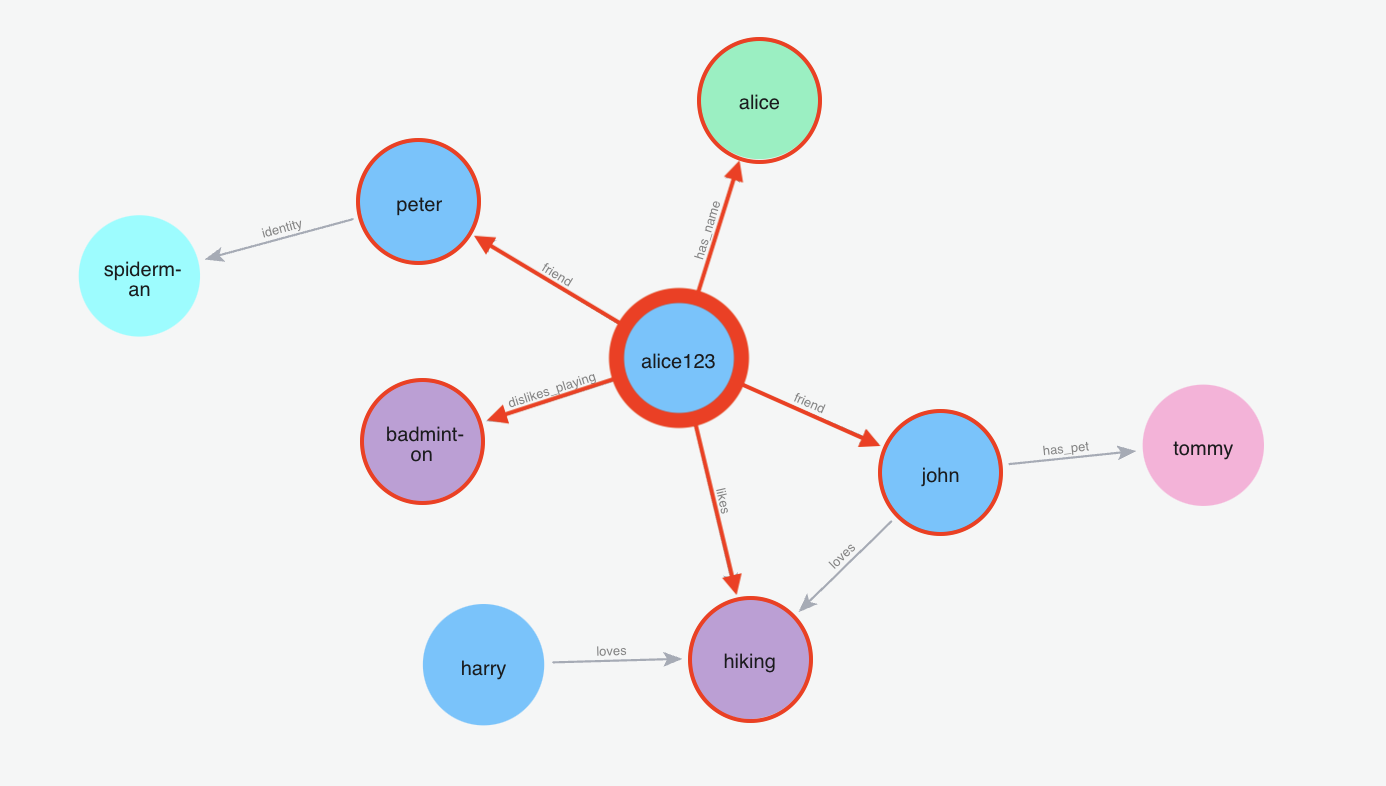

m.search("What is my name?", user_id="alice123")
Below graph visualization shows what nodes and relationships are fetched from the graph for the provided query. Graph Memory Visualization

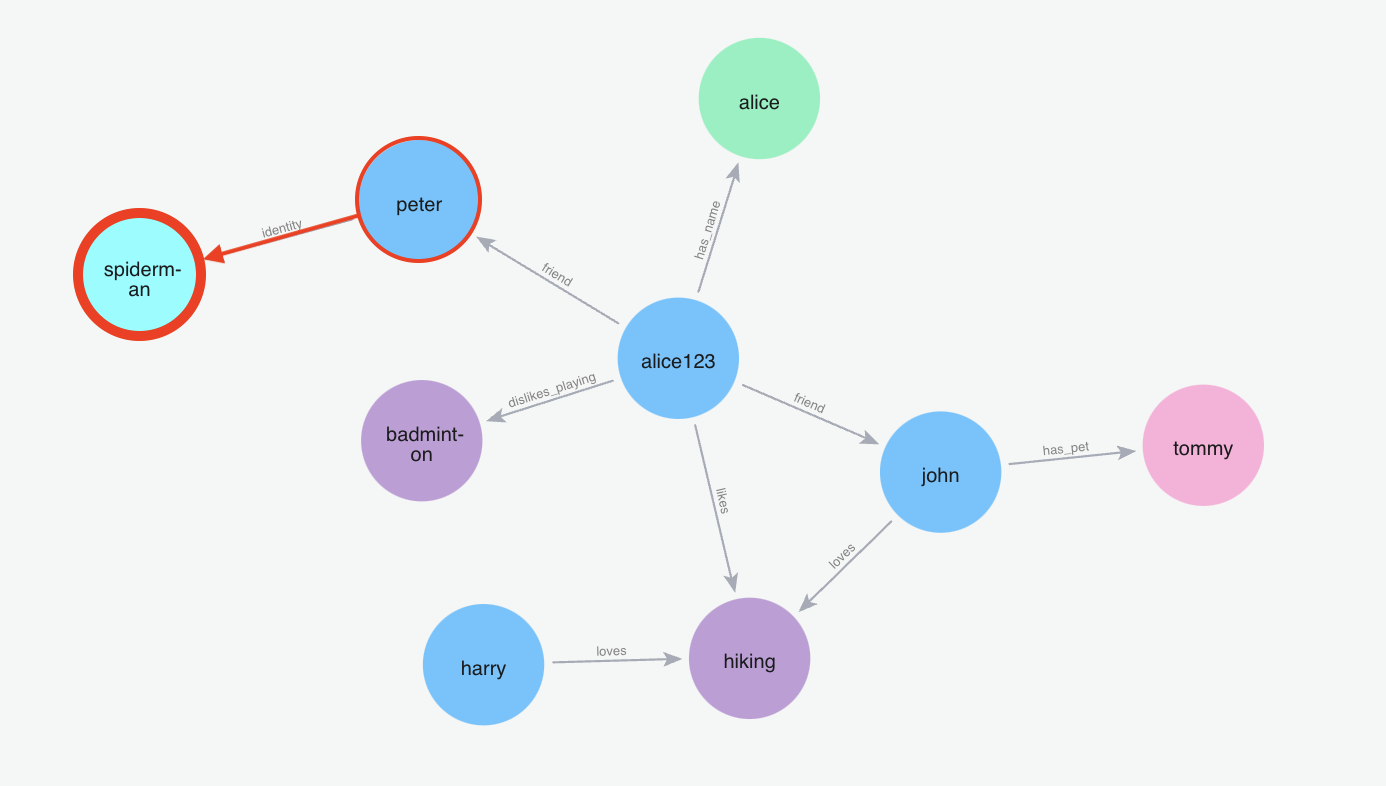

m.search("Who is spiderman?", user_id="alice123")
Graph Memory Visualization
Note: The Graph Memory implementation is not standalone. You will be adding/retrieving memories to the vector store and the graph store simultaneously.

​
Using Multiple Agents with Graph Memory

When working with multiple agents and sessions, you can use the “agent_id” and “run_id” parameters to organize memories by user, agent, and run context. This allows you to:
  1. Create agent-specific knowledge graphs
  2. Share common knowledge between agents
  3. Isolate sensitive or specialized information to specific agents
  4. Track conversation sessions and runs separately
  5. Maintain context across different execution contexts

​
Example: Multi-Agent Setup

# Add memories for different agents
m.add("I prefer Italian cuisine", user_id="bob", agent_id="food-assistant")
m.add("I'm allergic to peanuts", user_id="bob", agent_id="health-assistant")
m.add("I live in Seattle", user_id="bob")  # Shared across all agents

# Add memories for specific runs/sessions
m.add("Current session: discussing dinner plans", user_id="bob", agent_id="food-assistant", run_id="dinner-session-001")
m.add("Previous session: allergy consultation", user_id="bob", agent_id="health-assistant", run_id="health-session-001")

# Search within specific agent context
food_preferences = m.search("What food do I like?", user_id="bob", agent_id="food-assistant")
health_info = m.search("What are my allergies?", user_id="bob", agent_id="health-assistant")
location = m.search("Where do I live?", user_id="bob")  # Searches across all agents

# Search within specific run context
current_session = m.search("What are we discussing?", user_id="bob", run_id="dinner-session-001")
If you want to use a managed version of Mem0, please check out Mem0. If you have any questions, please feel free to reach out to us using one of the following methods:
